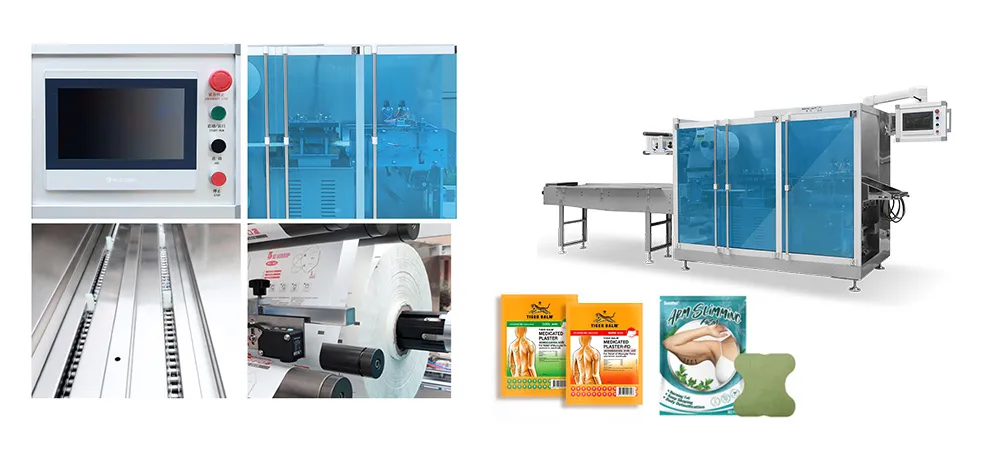

RJ800 Medical Paper Plastic Four-sided Packing Machine
This machine is a four sided sealing packaging machine developed by our company's researchers. A product specifically designed and developed for automatic packaging in the dressing and adhesive industry. Suitable for packaging, heat sealing, and longitudinal and transverse cutting of sheet-like materials such as medical dressing patches and gauze sheets.
Features
Functional Chractristics
- Host servo pulse speed regulation, can adapt to a variety of packing materials
- Touch screen display, machine speed, set bag length, packing output, heat sealing time will be displayed on the screen, at a glance
- Bag length automatic adjustment, the change of packing lengthcan be set directly, very convenient and fast
- Color label according to the color label film, colorless label can be fixed length film,automatic tracking
- Automatic temperature control, the heat sealing parts using two groups of temperature control instrument automatic temperature control, improve the sealing quality
- Heat seal automatically track film movement. The hot sealing time and hot sealing tracking length can be adjusted arbitrarily within the specified range
- The whole machine is driven by servo motor, good control performance such as regulation and maintenance.
Scope Of Application
Technical Parameters
| Model | RJ-800W |
| Productive Capacity | 100-200bag/min (depending on packing materials) |
| Maximum Packaging Film Roll Size | φ400mm |
| Packing Film Width | 350mm |
| Package Size | L:70-450mm W:80-175mm L:1-5mm |
| Compressed Air | 0.3m³/min |
| Air Pressure | 0.5-0.7Mpa |
| Voltage | 220/380V 50Hz |
| Gross Power | 50kw |
| Machine Weight | 2750kg |
| Overall Dimensions(mm) | L5600×W1550× H1800mm |
