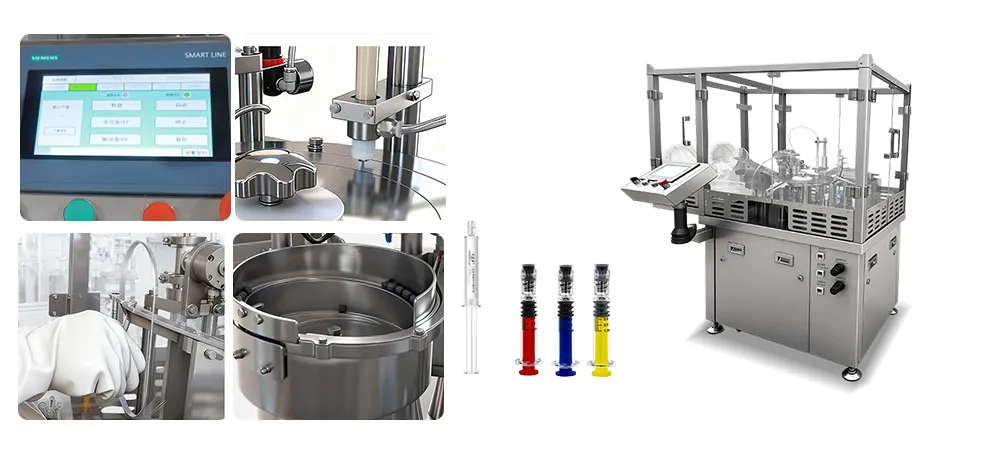

Rsl-30s Plastic Syringe Filling And Plugging Machine
Syringe Filling Machine
* Suitable for wacuum filling of paste and water.
* Automatic nesting, automatic box separation.
* Automatsc tuoe, separate tube into the cup.
* Autommatsc follow feed, vacuum piug(External vacuum pump)
* There are no air bubbles in the medicine after filling
* Optional laminar flow.
* This machine can be used in a single machine,or can be composed of a complete assembly line.
Technical Parameters
| Model | RSL-30s |
| Suitable For | suitable for water-base and poultice viscous liquid |
| Suitable For Syringe Volume | 0.5ml、1ml、1.5ml 2.25ml、3ml、5ml、10ml、20ml |
| Filling Accuracy | ≤±1% |
| Number Of Filling Pins | 1pcs |
| Production Speed | 900-1200Pcs/hour |
| Total Power | 2.7KW |
| Compress Air | 0.55-0.75 Mpa20L/S |
| Vacuum System | Machine for water-based soultion,no need vacuum pump. Machine for poultice, viscous liquid, gel, 6x10-2 Pa15L/S vacuumis required. |
| Overall Dimension（mm） | L1200×W950×H1800 |
| Weight Of Basic Machine | 900kg |
Related Products
Rsl-30s Plastic Syringe Filling And Plugging Machine
R30 Pre-filling And Sealing Syringe Automatic Filling And Plugging Machine
R50 Pre-filling And Sealing Syringe Automatic Filling And Plugging Machine
The syringe filling machine is specially designed for liquid and paste materials, suitable for pre filled sterile vacuum filling process. The equipment integrates fully automated functions such as automatic nest removal, automatic feeding, automatic filling, automatic vacuum suction and plugging, and automatic tube discharge.
